Top-Eye DFD

Top-Eye DFD is made for topography analysis.

Top-Eye DFD is made for topography analysis. It uses the motorized axis to acquire images with height information. Collection and processing of the images lead to a true color 3D surface model. The D.F.D. method calculates the positions of projections and depressions in the area in which focus cannot be obtained based on multiple images and obtains the data of height diferences. As a result, image composition is enabled with less sampling data.

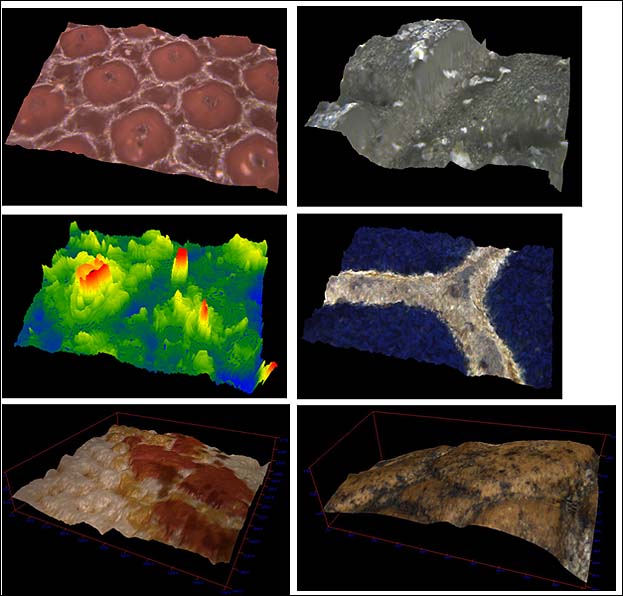

Images:

Aplication:
DFD. Top-eye.
